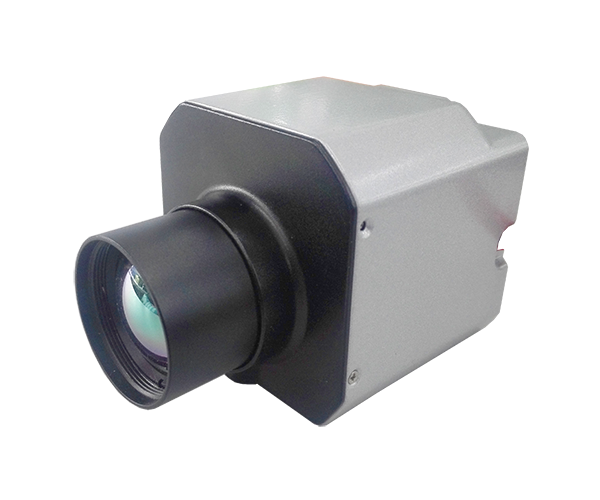

Módulo de medição de temperatura para UAV TI30

Código do item: TI30 384 x 288 pixels

Categoria: Sistema de imagem térmica UAV - Módulo de medição de temperatura para UAV

Download PDF Envie esta página Enviar sua pergunta

+86 (0)571 8720 9887 +86 (0)571 8512 5358 overseas@ulirvision.com evaxaiohz

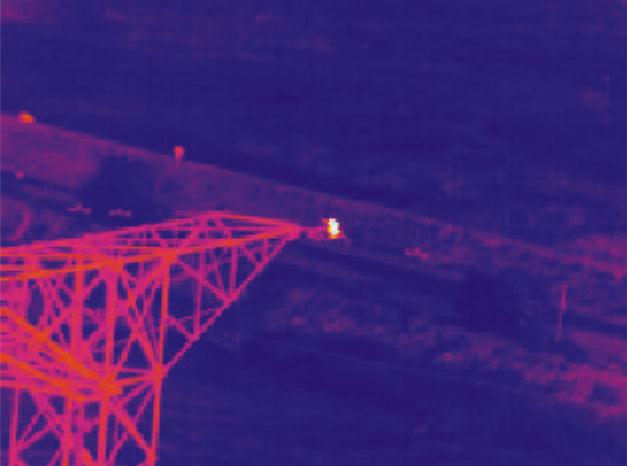

ULIRVISION TI30 & TI60 are thermal imaging modules designed for UAV applications. With small size and light weight, they offer surprising thermal images & videos with temperature on each spot, serve your purposes in the air.

Principais Características

◆ 384×288|640×480, 17μm uncooled FPA detector
◆ Auto tracking of hot spots and showing the temperature values
◆ Thermal images, temperature and temperature data flows are saved
◆ Light weight, less than 150g
◆ Compatible with the main communication protocol of UAV

Detector Data
Type	Uncooled FPA
IR resolution	384×288
Pixel pitch	17μm
Spectral range	7.5～14μm
NETD/Sensitivity	65mK
Lens
FOV/Focal distance	24°×18°/15mm
Minimum imaging distance	50cm
IFOV	1.3mrad
Focus	Manual
Image Performance
Image enhancement	IVE image enhancement algorithm
Frequency	50Hz/60Hz
Digital zoom	2X、4X
Color palletes	10 palletes(including iron, rainbow, white hot and black hot etc.)
Measurement
Temperature range	-20℃～+150℃
Temperature accuracy	±2℃/±2%(reading)
Highest temperature tracking	Display the location and value of the highest temperature point
Measurement correction	Auto
Emissivity correction	Adjustable from 0.01 to 1.0 or selected from list of materials
Background temperature correction	Auto
Atmospheric transmissivity correction	Auto
Fliter or window transmittance	Auto
Setting function	Date/time, temperature unit ℃/℉/K, language
Data Storage
Temperature data	Customized UDS, use IRSee to analyze
Temperature data flow	Customized UTD, use IRSee to playback, freezable、loop、image processed when playing
Image format	JPG format
Video format	AVI format, H.264 compression
SD card	32G high speed TF card
Storage control	Serial port command, level trigger or key trigger is optional
Report	Word format, customized format function
Interfaces
Power	Yes
Video output	CVBS
Control port	RS232
Installation Interface	UNC 1/4”-20 standard interface, M3 treaded joint
Power System
DC supply	DC: 12V
Power consumption	<3.6W
Environment Parameters
Operation temperature range	-30℃～+60℃
Storage temperature range	-40℃～+70℃
Humidity	≤95%(Non-condense)
EMC	CE/FCC
Vibration	2G(IEC60068-2-6)
Shock	25G(IEC60068-2-29)
Encapsulation	IP54(IEC60529)
Physical Data
Size(L×W×H)	95mm×55mm×60mm
Weight	≤150g(with 25mm athermal lens)
Packing
Standard	Thermal imaging camera with 25mm athermal lens, intergation cable, software CD, warranty card, certificate, calibration book, transport case
