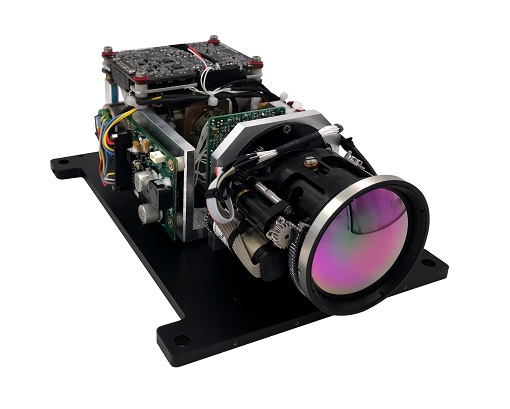

Small Mid-wave Cooled Thermal Imaging Core TC640SMW

Código do item: TC640SMW

Categoria: Núcleo de imagem térmica - Núcleo arrefecida

+86 (0)571 8720 9887 +86 (0)571 8512 5358 evaxaiohz

TC640SMW is a small sized mid-wave cooled thermal imaging core with SOFRADIR detectors which can be easily integrated into infrared systems that require extremely long distance detection and adaption to any harsh environment.

Principais Características

◆ HgCdTe detector
◆ Continuous optical zooming, triple views, multiple lenses are optional
◆ Formidable image processing ability
◆ Multiple interfaces, easy integration
◆ Compact design, low power consumption



Detector Data

Type MCT
IR resolution 640×512
Pixel pitch 15μm
Spectral range 3~5μm
NETD/Sensitivity 20mK

Lens Data

FOV 2.2°×1.8°~36.5°×29.2°
Focal distance 15mm~250mm continuous zoom lens
F/# F4/F5.5
Lens(Optional) 50/250mm duel FOV lens, 25/80/320 triple FOV lens, 18mm~275mm continuous zoom lens, 18mm~435mm continuous zoom lens(optional: 960mm continuous zoom lens)

Image Performance

Correcting Manual correction, background correction
Image enhancement Auto Image Filtering, DDE
Image mirroring Vertical, horizontal
Frequency 50Hz
Zoom 2x、4x
Polarity/LUTmode Black hot/White hot
Cross display Yes


Control port RS232/RS422
Analog video output PAL
Digital video output SLVDS/CameraLink

Power System

Working voltage DC: +24V~+32V
Power consumption <10W@25℃(standard)
Cooling time ≤8min

Environmental Parameters

Operating temperature range -40 ℃~+60℃
Storage temperature range -40 ℃~+70℃
Humidity 5%~95% (non-condense)
Shock 20g shock pulse with 6ms half sine
Vibration 1.5g 5-200Hz sine

Physical Data

Size 125mm×115mm×98mm
Weight 800g
