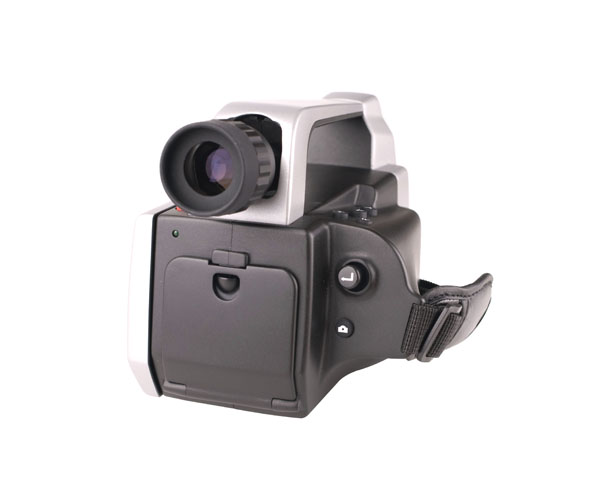

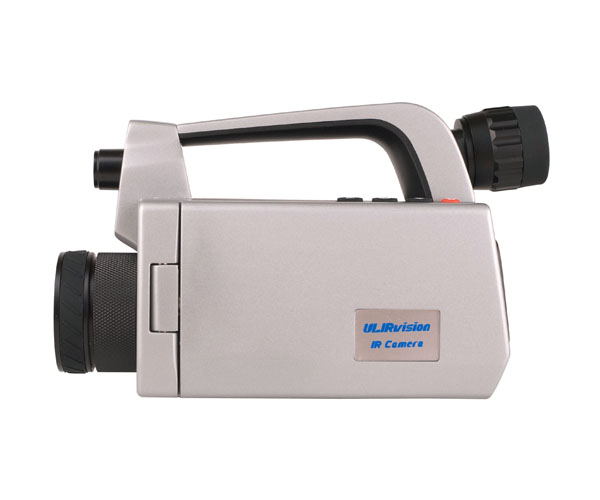

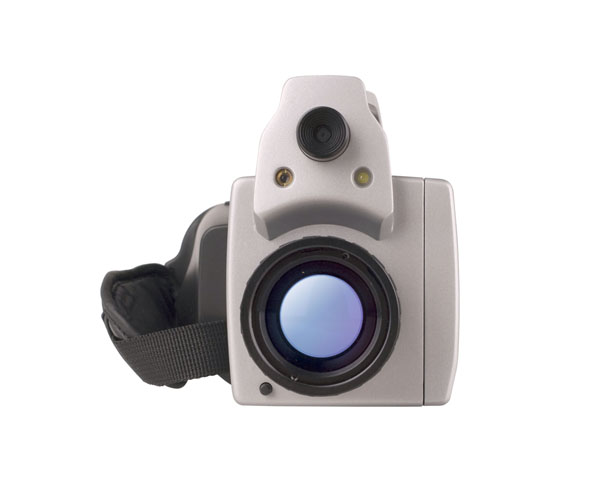

Câmara de imagem térmica de TI600

Código do item: TI600 640 x 480 pixels

Categoria: Câmaras de imagens térmicas - Elétrica e Industrial

Download PDF Envie esta página Enviar sua pergunta

+86 (0)571 8720 9887 +86 (0)571 8512 5358 overseas@ulirvision.com evaxaiohz

ULIRVISION TI400|TI600 are with ergonomic design, high performance with 5MP visual camera, interchangeable lens, large 5” foldable and rotatable LCD, manual & auto focus. It can provide powerful assistance for thermographers to have the most efficient instrument for maintenance inspections. TI400|TI600 have a wide range temperature measurement to satisfy variety of thermograph applications and they enable you to identify the small temperature difference that could cause big problems.

Principais Características

◆ Folding and 270° rotatable display
◆ Auto/Motor focus for one-hand operation
◆ Bright LED light, laser pointer
◆ Built-in digital camera, 5.0M resolutions
◆ Real-time thermal video transfer to PC via USB, and remote transfer via MSN and Skype

Item	TI600
Detector Data
Type	Uncooled FPA
IR resolution	640×480
Pixel pitch	17μm
Spectral range	7.5～14μm
NETD/Sensitivity	65mK
Lens
FOV/Minimum imaging distance	24°×18°
Minimum imaging distance	0.3m
IFOV	0.68mrad
Focus	Auto/Motor/Manual
Lens(optional)	45°×33°/0.5m、12°×9°/1m、6.2°×4.7°/8m
Image Performance
Display	5”, 270° tiltable LCD, 800×480 pixels
Visual camera	5.0 mega pixel
Frequency	50Hz/60Hz
Zoom	1X～8X continuous
Color palletes	12 palletes(including iron, rainbow, white hot and black hot etc.)
Contrast/brightness	Auto/Manual
Measurement
Temperature range	-20℃～+600℃(can be extended to 1200℃)
Temperature accuracy	±2℃/±2%(reading)
Spotmeter	10 adjustable spots
Line profile	Vertical/Horizontal
Area	5 adjustable boxes with max./min./avg temperature value
Isotherms analysis	Capture high/low temperature/interval
Alarm	Voice, color
Dew point alarm	Yes
Measurement correction	Auto/Manual
Emissivity correction	Adjustable from 0.01 to 1.0 or selected from list of materials
Background temperature correction	Auto
Atmospheric transmissivity correction	Auto
Setting function	Date/time, temperature unit ℃/℉/K, language
Video	Can be recorded and saved
Image Storage
Storage type	Built-in flash card, >700 images
	16G SD card, >9600 images
Storage mode	Store signal frame image auto/manual
Signal frame infrared image format	JPEG, with 14-Bit measured data image
Signal frame visible light image format	JPEG or stored with signal frame image
Voice annotation	60s voice record, stored with per image via built-in microphone
Laser Point
Grade/Type	Class 2, 1mW/635nm Red
Interfaces
Power interface	Yes
SD card slot	Yes
Video output	CVBS
Audio output	Yes
USB	Radiometric images transfer to and from PC
Tripod	1/4” -20
Power System
Battery type	Lithium battery
Battery operation time	3h continuous
External power	DC: 10V～15V
Charging system	Intelligent charger or in camera(AC adapter or 12V car charger)
Power saving	Yes
Environment Parameters
Operation temperature range	-20℃～+50℃
Storage temperature range	-40℃～+70℃
Humidity	≤95%(Non-condense)
Shock	2G(IEC60068-2-6)
Vibration	25G(IEC60068-2-29)
Encapsulation	IP54(IEC60529)
Physical Data
Size	215mm×145mm×135mm
Weight	≤1.6kg(with battery and standard lens)
Packing
Standard	Thermal imaging camera with standard lens, 2 lithium batteries, battery charger, adapter, USB cable, SD card, card reader, software CD, warranty card, calibration certificate
Option	Laptop, SLR camera
