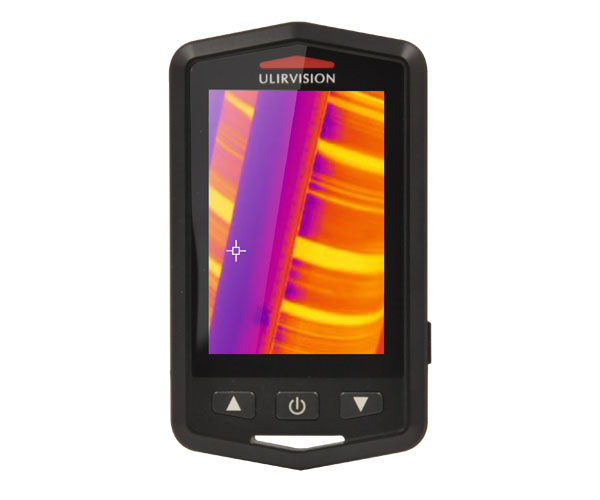

Pocket Thermal Camera T2
Código do item: T2 80×60 pixels
Categoria: Câmaras de imagens térmicas - Elétrica e Industrial
T2 is a high cost-effective hand-held thermal camera for beginners without any professional training. It is convenient to carry and can be put into the pocket, also it is quick to start and supports various measurement methods.It can be used in temperature measurement area such as electric industry, mechanical inspection, etc.
Principais Características◆ 3.5” screen, auto rotation
◆ Small volume
◆ Quick start, measuring at any time
◆ Various measurement methods
◆ 3 button keyboard, beginner friendly
◆ 50° to view, easy to discover problems
◆ USB interface to charge and transmit data
|
Item |
T2 |
|
Detector Data |
|
| Type | Uncooled FPA |
| IR resolution | 80×60 |
| Pixel pitch | 17μm |
| Spectral range | 7.5～14μm |
| NETD/Sensitivity | <50mK |
|
Lens Data |
|
| FOV | 50°× 37.5° |
|
Image performance |
|
| Display | 3.5” 480×320 |
| Frequency | 9Hz |
| Focus mode | Fixed |
| Color palettes | Iron、rainbow and white hot |
|
Measurement |
|
| Temperature range | -20℃～+150℃ |
| Measurement accuracy | ±2℃/±2% |
| Emission correction | Adjustable from 0 to 0.95, or selected from list of materials |
| D:S | 15:1 |
| Measurement modes | Spot(center) mode, capture max./min./avg.temperature automatically |
|
Image storage |
|
| Storage capacity | 800 |
| Storage format | JPG |
|
Interface |
|
| Power interface | Yes |
| Data transmission | USB3.0 Type-C |
|
Power System |
|
| Battery type | Rechargeable Li-ion battery |
| Operating time | >4h |
| Charging type | USB |
| External power | DC: 5V |
|
Environmental Parameters |
|
| Operating temperature range | 0℃～+45℃ |
| Storage temperature range | -20℃～+55℃ |
| Encapsulation | IP54 |
|
Physical Data |
|
| Size | 125mm×72mm×16mm |
| Weight | 173g |
|
Others |
|
| Sensor | Direction sensor |
| Standard packing | Pocket thermal camera, power adapter, USB Type-C cable, user manual, warranty card, certification |
