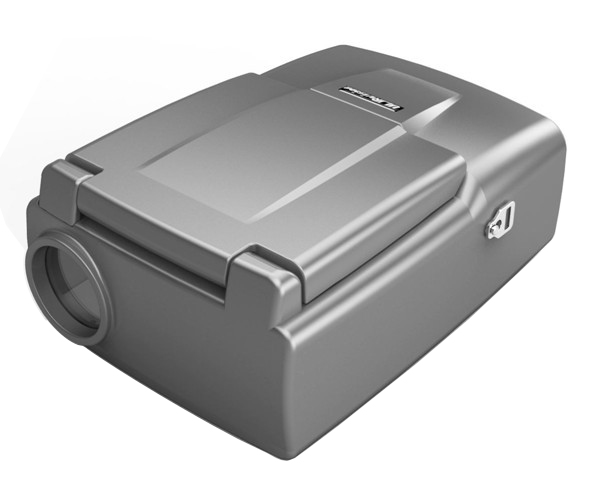

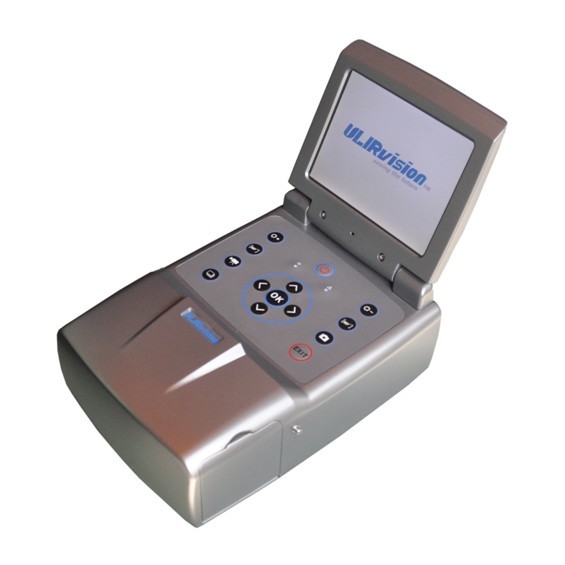

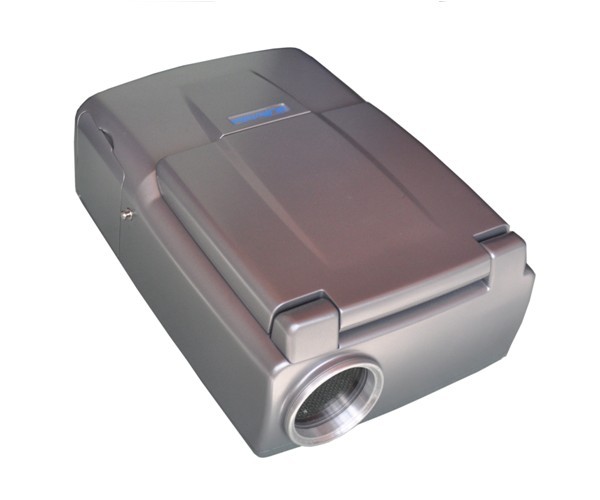

UVSee Câmera de Corona TD90
Código do item: TD90
Categoria: Câmera corona de UVSee - Câmera corona de UVSee

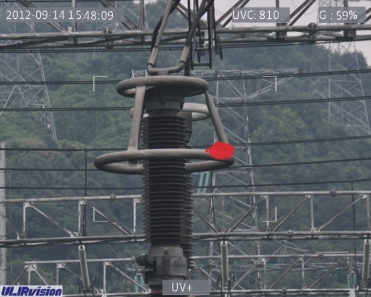

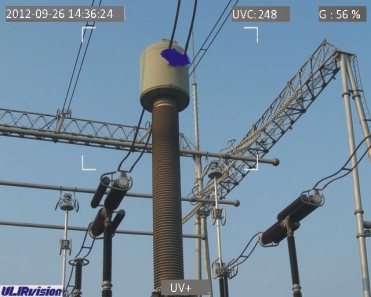

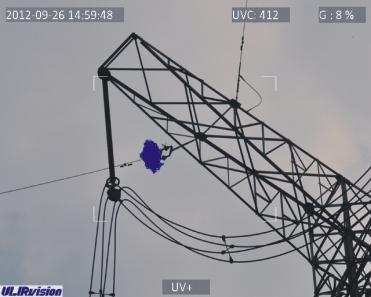

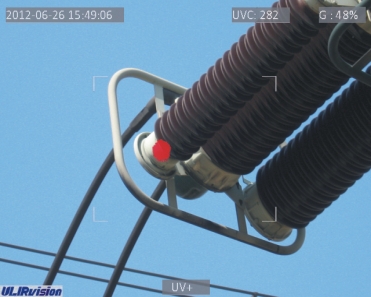

TD90 is an innovative NDT - Non Destructive Testing equipment, which detects, pinpoints and documents flash-arc corona and arcing partial discharge camera. Being with high sensitivity, it is a power tool to detect UV emission in full daylight with high signals from faraway and nearby sources. It is an ideal predictive maintenance device for overhead transmission lines and high voltage substations.It is widely used in transmission line inspection, electrical utilities, HV research institutes, HV electrical component inspection, HV panel inspection, service providers, laboratories and so on.
Principais Características◆ High sensitivity to UV signals
◆ Precise location of corona emitting sources
◆ Auto focus of UV and visible channels
◆ Light weight 2.5kg
◆ 5.7” foldable color LCD
◆ UVSee report software for documentation
|
UV - Optical properties |
|
| Image type | Monochrome video |
| UV sensitivity | ≤3 x 10-18watt/cm² |
| Minimum discharge detection | 1.5pC @ 10 meters |
| Spectral range | 240-280nm |
| FOV | 5.5° x 4.0° |
| Focus | Auto/Manual |
| Focus range | 2m~∞ |
| Detector life span | No degradation |
|
Visible - Optical properties |
|
| Image type | Color video |
| Visible light sensitivity | 0.1 Lux |
| Focus | Auto/Manual |
| Zoom | 12x(Digital)、25x(Optical) |
|
Image Performance |
|
| Image Display | 5.7” VGA color transflective sunlight readable LCD, folding and touchable, 640×480 |
| UV image enhancements | Digital filtering denoising |
| Image frozen | Freeze the real time image |
| Frequency | 50Hz |
| Modes | Combined (UV & visible), UV only, Visible only |
| Video standard | PAL/NTSC |
|
Image Storage |
|
| Image format | JPG |
| Video format | AVI |
| Media download | Via Card Reader, USB |
| Audio format | WAV |
| Playback | Video/Pictures/Audio |
| SD card | 8G SD card |
| Storage capacity | 8000 images or 4 hr video |
|
Data process |
|
| UV/Visible Overlay Accuracy | Better than 1 milliradian |
| UV image integral time | Can set the integral time |
| Video streaming | H.264 standard |
|
Functional characteristics |
|
| Alarms | Audio or LED |
| Menu | Button operation or touchable operation |
| Location | GPS |
| Time/Date | Can set and save time/date |
| Software upgrade | Upgrade via SD card |
| Analysis software | Generate report |
|
Output Interface |
|
| Power interface | Yes |
| Video output | CVBS |
| Audio output | Microphone |
| SD card slot | Yes |
| Tripod | 1/4”-20 |
|
Power System |
|
| External power | AC: 110V-240V / DC: 50-60Hz/9V 4A |
| Battery type | Rechargeable Li-Ion |
| Operation runtime | 2hours |
| Charge | Online charging or charger |
| Power consumption | ≤10W |
| Power saving | Yes |
|
Environmental Data |
|
| Operation temp range | -20 ℃~+50℃ |
| Storage temp range | -25 ℃~+60℃ |
| Humidity | ≤95% (non-condense) |
| Shock | 2G(IEC60068-2-6) |
| Vibration | 25G(IEC60068-2-29) |
| Encapsulation | IP54(IEC60529) |
| EMC | EN61000-6-4&EN61000-6-2/FCC47CFR Part15 class A/EN61000-4-8.L5 |
|
Physical Characteristics |
|
| Size | 238mm×165mm×91mm |
| Weight | ≤2.5kg |
|
Packing |
|
| Standard | Corona Camera UVSee TD90，AC power adapter，2pcs Li-ion battery，charger，SD card，SD card reader，video cable，CDROM ( UVSee software and Manual), Warranty card, Strap, transport case, USB Cable |
| Option | Laptop,Tripod |
.jpg)
.jpg)
.jpg)
.jpg)
